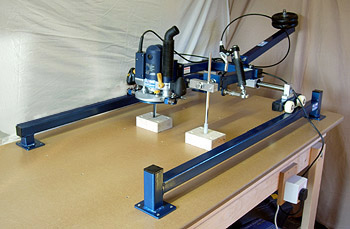

The Clone Universal Router Duplicator, Copy Carver turns a standard plunge router
into a highly effective wood copy carving machine, capable of copying many 3D shapes from -

Propellers to Guitar Bodies to Furniture Components to Wooden Toys the list is endless.

Click Here for a list of available models and options. Shown below with optional 'Anti Kick-Back' braking system.

• Accurate
• Affordable
• Easy to Use
• Built to Last
• Smooth Operation
• Designed for Standard Plunge Routers

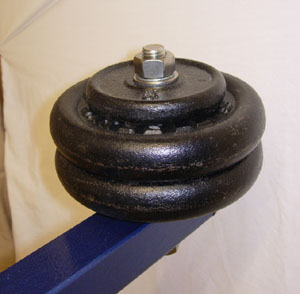

• Optional Braking System for Greater Control
• Bosch Router Clamp Available Click Here for Details
• Duplicators Capable of Copying up to 600mm Wide Click Here for Details

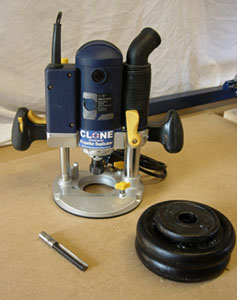

1.  Standard Plunge Routers. Other duplicators are built around a specific router. With the Clone Universal Duplicator, almost any 1/2� plunge router can be used. When you're not using the duplicator you can quickly remove the router and use it as normal.

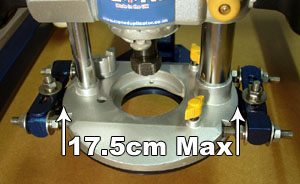

	Note: Plunge router must have provision for a fence guide attachment as shown in the picture opposite and have a base no wider than 17.5cm.

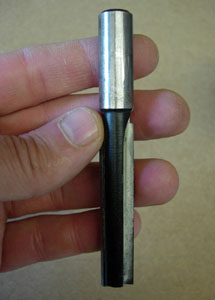

2. Standard Router Cutters. The Clone Copy Carver has been designed to use standard 1/2� x 63mm router cutters, the same cutters that are used for cutting kitchen work tops. These are readily available and inexpensive to buy. Using these cutters combined with the power of a 1/2� plunge router allows the Clone Router Duplicator to quickly and easily cut through the wooden blank.

Quality and built to last.

Clone Universal Duplicators are individually hand built in a small rural workshop on the edge of the Cotswolds. They are of steel construction with all nuts, bolts and washers being stainless steel.

Linear bearings, rollers and precision ground rail means that the Clone Copy Carver needs little effort to operate as you can see in the Demonstration Video. When the machine is not in use, it can be quickly dismantled for easy storage.

Five Models to Choose From.

Duplicators capable of copying blanks from 200mm to 600mm wide are available. Please Click Here for details and prices.

Don't just copy it, Clone it!

The Clone Universal Duplicator is a very versatile wood copy carving machine. Capable of copying many 3D shapes from propellers to guitar bodies to furniture components to wooden toys the list is endless. Made in the UK, easy to use, cost effective and affordable. It will save you time and pay for itself again and again. Ideal for business or home use.
